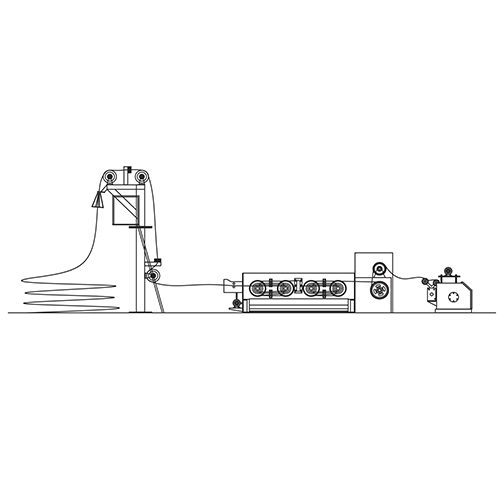

Rod Break Down Machine Four Spendle

Name: Rod Break Down Machine Four Spendle
Brand: TOMER MACHINES

950000.00 - 4500000.00 INR/Unit

Get a Price/Quote

Product Details:

Manufacturing Year 2023 Years
Inlet Diameter 8 mm - 10 mm Millimeter (mm)
Wire Material Copper Aluminum
Max De-coiler Weight 1500 kg
Drawing Material Copper Aluminum
Application Wire Drawing
Condition New
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Rod Break Down Machine Four Spendle Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 950000.00 - 4500000.00 INR/Unit

Rod Break Down Machine Four Spendle Product Specifications

Production Capacity 200 kg/hour Kg/hr
Product Type Rod Break Down Machine
Drawing Passage Four Spindles
Voltage 380 V Volt (v)
Condition New
Production Speed 300 m/min Pieces/Minute
Function Rod Break Down
Power 50 HP Horsepower (HP)
Application Wire Drawing
Wire Material Copper Aluminum
Inlet Diameter 8 mm - 10 mm Millimeter (mm)
Manufacturing Year 2023 Years
Drawing Material Copper Aluminum
Max De-coiler Weight 1500 kg

Product Description

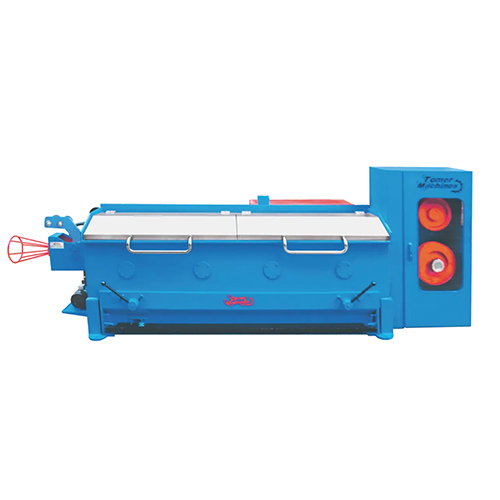

Rod Break Down Machine Four Spindle is made up of four Drawing capstan shafts and is housed in a robust manufactured casing. We make them with the highest quality raw materials and under expert supervision, ensuring that they are of outstanding quality. This comes in a variety of styles and can be customized to meet your specific needs. It is built in such a way that they can handle copper and aluminum wire with ease. This is very effective and safe to use.

Rod Break Down Machine Four Spindle Specifications:

Model: TM 317/17
Inlet: 8.00mm
Outlet: 0.90mm

Transmission method	Helical Gear Driven
Max cone diameter	400 mm
Frame	MS fabricated with precision
Shaft material	EN-19
Gear material	20 MNCR5
Capstan material	HCHCR/ Tungsten carbide coat (As per customer demand)
Bearing housing material	Solid Ci housing in divided construction
Gear terrain	25% dipped in Gear Oil
Drawing lubricant system	Wire drawing capstans and dies fully submerged, addition pressure Lubrication for die sat the inlet side if die holders
Die holder	MS with step type die holders, holder position set according to wire path
Drawing section	Separate, welded tanks in one block
Drawing capstans	4-step divided, wide rings with conical rolling surface
Handing	Optimum working height 85cms (easily accessible) inching pedals provided along with machine
Sealing of drawing sections	Gear separate housing 2 section system with rotary shafts seals and ring between the housing. Surrounded Areas-welded covers Body covers Double covers by stainless steel sheets.

Machine Model	TM/317/17	TM/317/17
Machine type	Cone type RBD	Cone type RBD
Suitable wire	CU	AL
Max drawing dies	17	17
Max drawing speed (mpm)	450-600	450-600
Intel size mm	8.00	9.50
Outlet size mm	0.90	1.15
Suitable take up mm	500/630/800 Drop coiler	500/630/800 Drop coiler

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Wire Drawing Machine' category

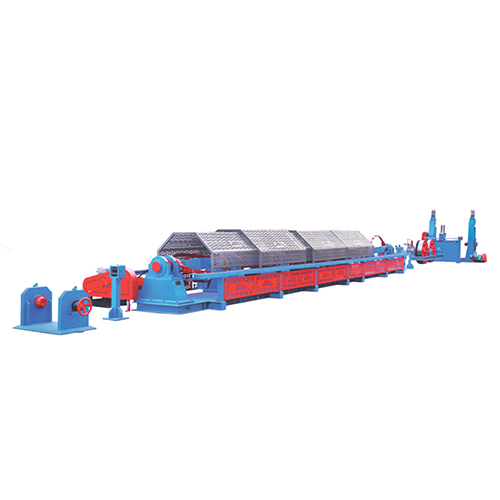

Stranding Wire Drawing Machine Price Range : 7500000.00 - 35000000.00 INR/Unit Minimum Order Quantity : 1 Wire Material : Copper Aluminum Application : Industrial Production Speed : 15 m/min Pieces/Minute Voltage : 380 V Volt (v) Condition : New Product Type : Stranding Wire Drawing Machine Production Capacity : 1000 kg/hour Kg/hr Power : 50 kW Watt (w) Drawing Material : Copper Aluminum wires Max De-coiler Weight : 500 kg Inlet Diameter : Up to 12 mm Millimeter (mm) Manufacturing Year : 2023 Years Function : Wire drawing and stranding Drawing Passage : Multipass
